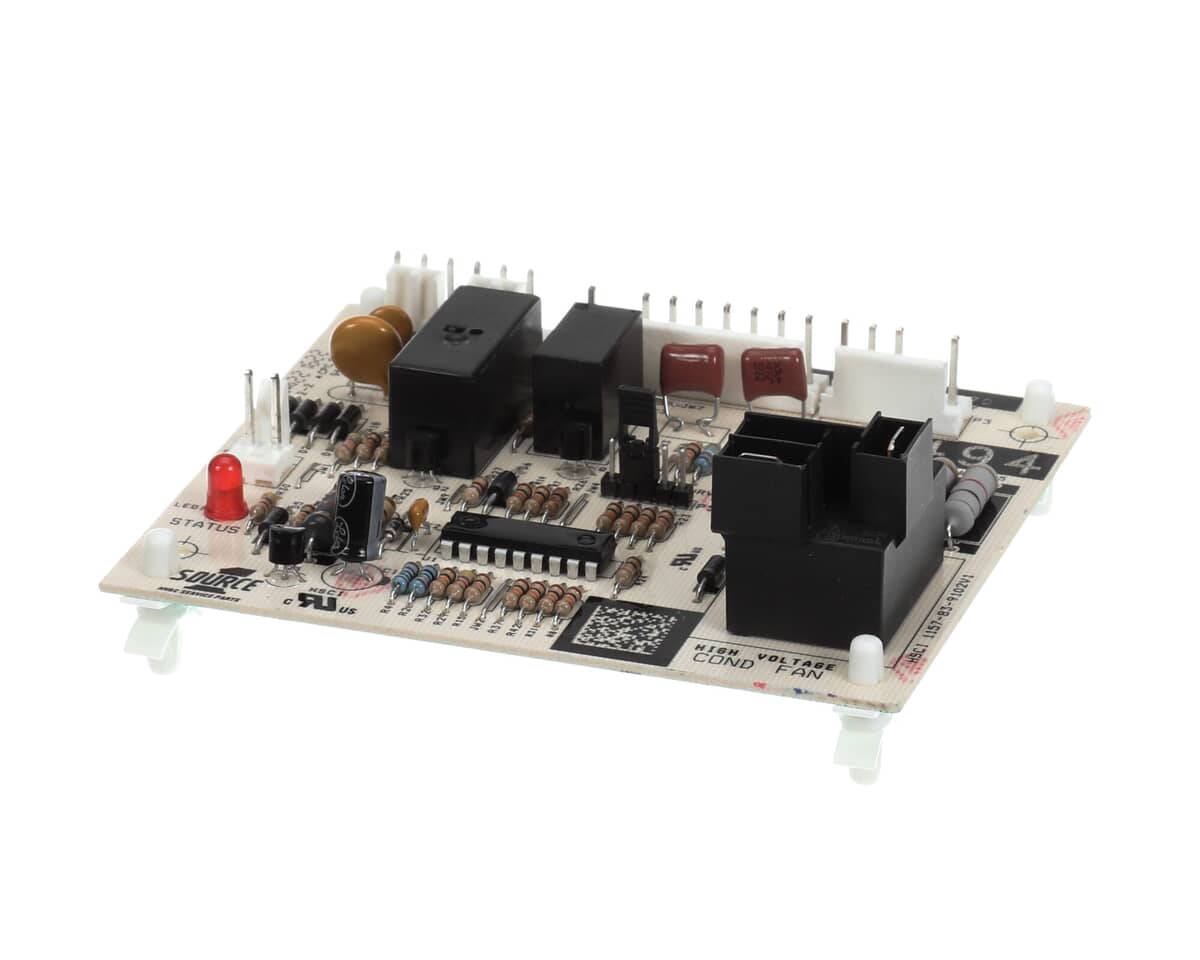

York S1-03103498001

BOARD CONTROL DEFROST SPLIT UNIT

Control boards are responsible for temperature, timing, activation and actuation, and other operational functions of restaurant equipment and HVAC systems. They may also display information to the user, such as the current ambient temperature, the temperature of a walk-in cooler, or the time remaining on an oven's cooking cycle. Some control boards may also have diagnostic functions and alarms to alert the user to any problems with the equipment. These boards are critical in ensuring personal comfort or the proper operation and optimal performance of restaurant equipment, helping to ensure that food is cooked and stored safely and efficiently.

Controls of all kinds are integral parts of restaurant equipment operation. A control is a switch or other device by which a machine is regulated. A control may be manual or automatically operated. An electro-mechanical control typically consists of multiple relays, timers, and/or counters wired together on an enclosure panel. Electro-mechanical control is also referred to simply as "Relay Control", which is a more accurate term since solid state electronic relays, timers, and counters are standard components. Contactors, motor and compressor starters, valves, thermostats, and other output devices are used to turn on/off motors, indicator lights, heating elements, and other components used in the equipment.

The defrost mechanism in a refrigerator heats the cooling element (evaporator coil) for a short period of time and melts the frost that has formed on it. The resulting water drains through a duct at the back of the unit. Defrosting is controlled by an electric or electronic timer: For every 6, 8, 10, 12 or 24 hours of compressor operation it turns on a defrost heater for 15 minutes to half an hour.

A defrost thermostat opens the heater circuit when the evaporator temperature rises above a preset temperature, 40°F (5°C) or more, thereby preventing excessive heating of the freezer compartment. The defrost timer is such that either the compressor or the defrost heater is on, but not both at the same time.
