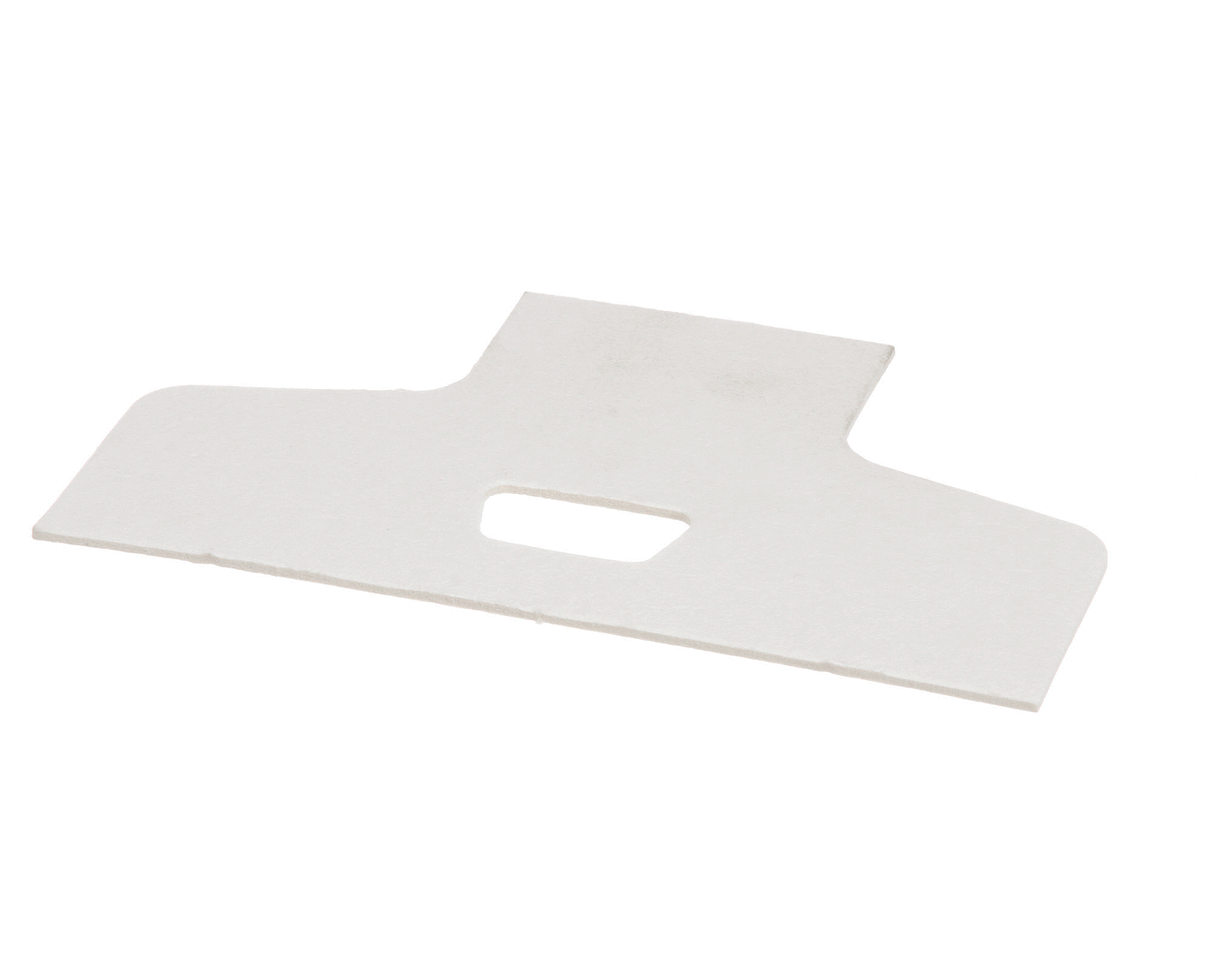

PAD, DRAIN PAN WICKING DRAWING #C-2957
A drain is a channel, conduit, or pipe designed to carry away or channel superflous liquids for disposal or reclamation. A drain assembly is one or more components of a larger mechanism that facilitates as a drain. A drain assembly component may be a pipe, stopper, pan, basket, valve, filter, plug, hose etc.
A drip pan or drain pan is a container for catching material such as water or grease that drips from above (as from the burners of a gas range or condensation from an evaporator). It is usually a shallow rectangular metal or plastic pan used especially for baking and roasting, frying, and water containment and may be connected to a drain or drain pipe.
A pan is any device used as a container or a collector. A pan may refer to a shallow cooking implement used on a burner or in an oven or it may refer to a similar collecting implement used to capture water, condensation, grease, shortening, and other drainage. A pan may also be used to contain processed food items such as meat, fruit and vegetables, and crumbs as they exit a mincer, slicer, or dicer.
Capillary action (sometimes capillarity, capillary motion, capillary effect, or wicking) is the ability of a liquid to flow in narrow spaces without the assistance of, or even in opposition to, external forces like gravity. The effect can be seen in the drawing up of liquids in a thin tube. It occurs because of intermolecular forces between the liquid and surrounding solid surfaces. If the diameter of the tube is sufficiently small, then the combination of surface tension (which is caused by cohesion within the liquid) and adhesive forces between the liquid and container wall act to propel the liquid.
Since 1945 True has taken pride in both manufacturing American made goods and also creating jobs for Americans. True’s 3.7 million square feet of manufacturing facilities are all located in he US. True also supports other American businesses by buying 75% of raw materials & components from American made suppliers.
