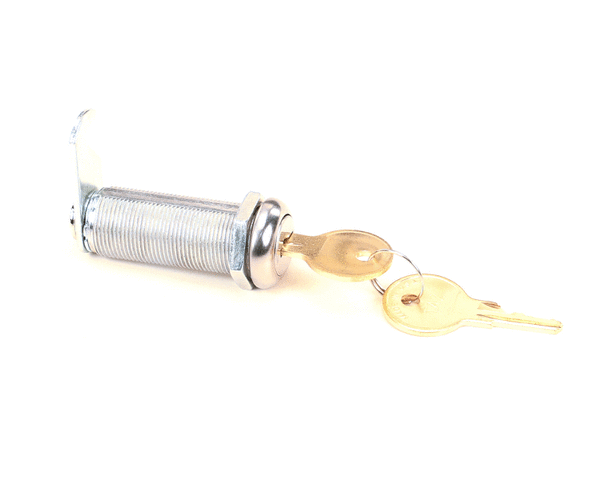

Traulsen 358-10089-00

CAM LOCK ASSEMBLY MC-TYL

Cams are commonly found in foodservice equipment. A cam is a rotating or sliding piece in a mechanical linkage used especially in transforming rotary motion into linear motion. It is often a part of a rotating wheel (e.g. an eccentric wheel) or shaft (e.g. a cylinder with an irregular shape) that strikes a lever at one or more points on its circular path.

A lock is a mechanical or electronic fastening device that is released by a physical object (such as a key, keycard, fingerprint, RFID card, security token, coin etc.), by supplying secret information (such as a number or letter permutation or password), or by a combination thereof or only being able to be opened from one side such as a door chain.

A lock may also be a clamp or a stop designed to prevent the flow of a liquid or the motion of a caster or wheel

Parts of a lock assembly include a cylinder or lock body, where a key is inserted. When locked, the cylinder engages a series of spring-loaded pins that keep the cylinder from turning. When a key is inserted, the uneven edge pushes the pins upward to fit the key’s height in that location within the lock body. Essentially, it recognizes the correct key when the pins move into their proper places. This “opens” the cylinder, allowing the bolt to move, and you to open the lock. The lock engages a piece of metal or plastic that extends from the door into the receiver and holds it closed. In addition, a lock assembly may include mounting components, brackets, washers and bolts.
