Genuine OEM Structural Concepts 20-03518

Nothing Generic, "Equivalent", or Off Brand.™

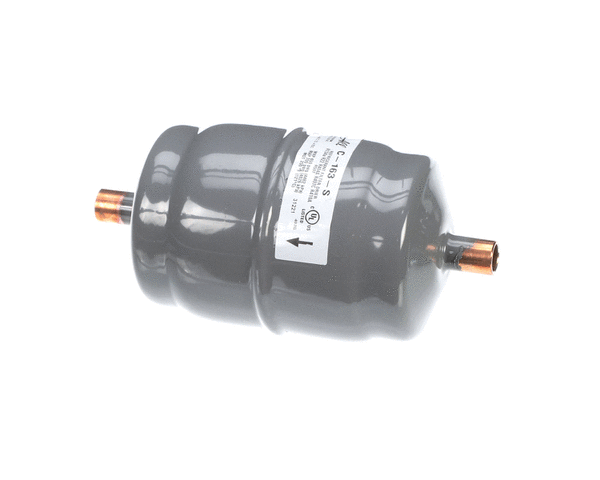

Structural Concepts 20-03518

FILTER DRIER

GENUINE STRUCTURAL CONCEPTS PARTS ONLY
SKU: STC20-03518

Condition: NEW

MPN: 20-03518
This is a genuine Structural Concepts 20-03518 for exact fit and function.
$86.59 $90.54
Need Help?
A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to absorb system contaminants, such as water, which can create acids, and two, to provide physical filtration. Appliance driers are usually installed in the liquid line, as close to the metering device as possible. If the metering device is a capillary tube, the outlet of the drier is typically sized to allow brazing the capillary tube into the drier. The screen in the drier is placed far enough away so that the capillary tube can be inserted into the drier without blocking the refrigerant flow into the capillary tube.  The position of the drier should be as vertical as possible with the flow in the downward direction. This position will also allow the drier to act as a liquid seal for the capillary tube, to ensure pure liquid refrigerant flow through the capillary tube.

Established in 1972, Structural Concepts is a leading innovator of temperature-controlled food display cases for supermarket and foodservice operators.

Genuine OEM STRUCTURAL CONCEPTS 20-03518
General Commodity Codes:
HTS Category Code: 8208.30.00
UNSPC Category Code: 48100000
NAICS Code: 333241
Manufacturer Code: STC

Dimensions & Details:
 Width: 3.25 in (8.26 cm)
Height: 3.2 in (8.13 cm)
Length: 8.15 in (20.7 cm)
Weight: 1.44 lbs (653.17 g)
Unit of Measure: Each (EA)
