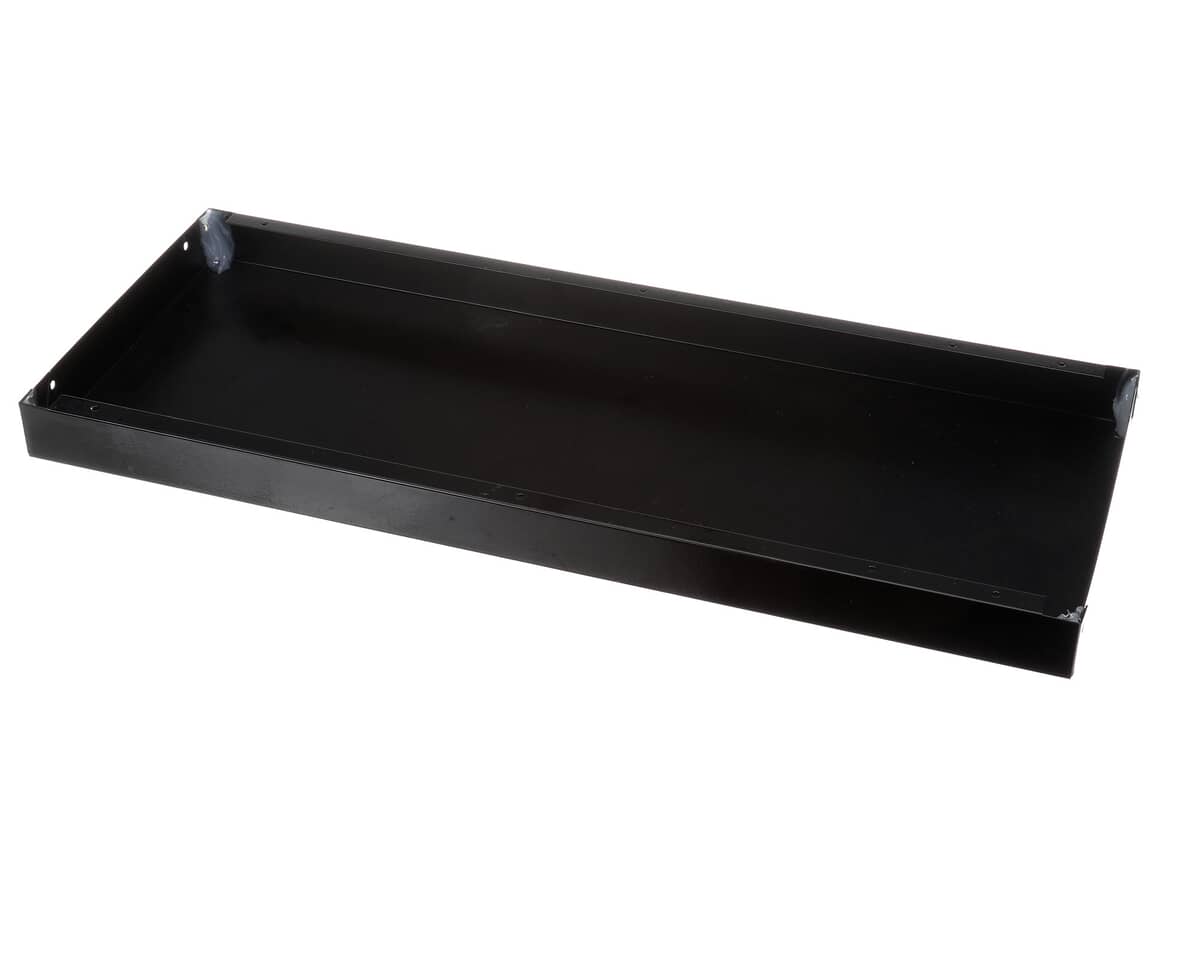

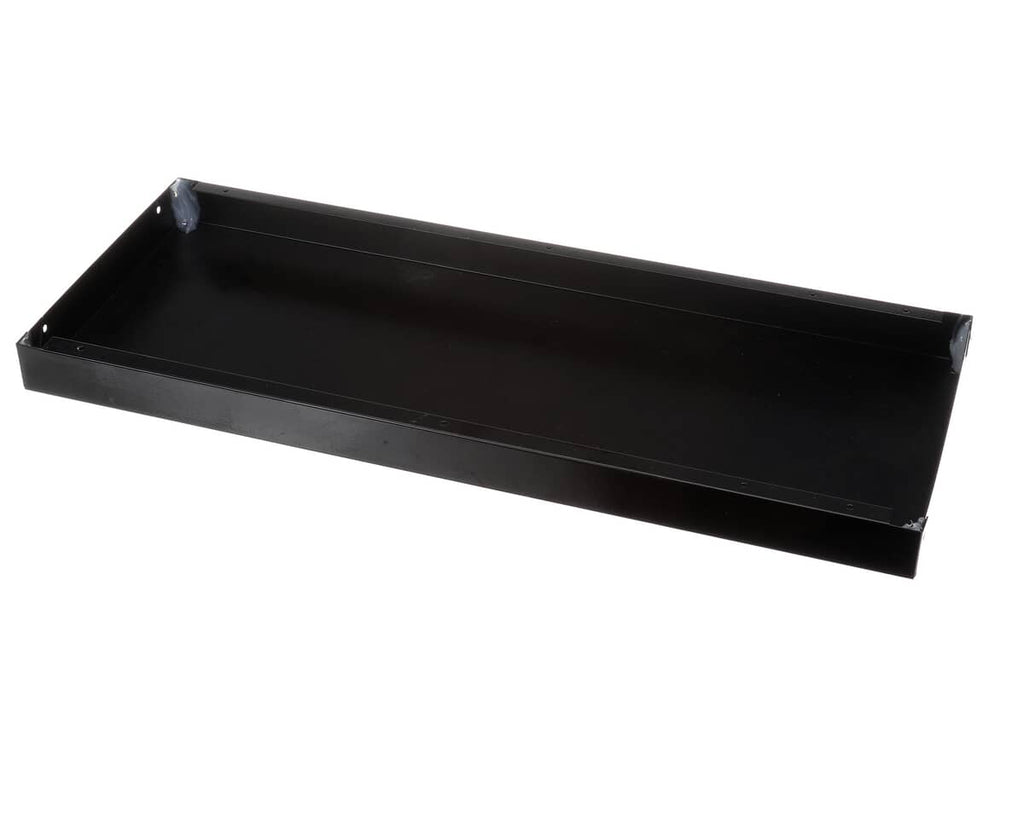

Norlake 171393

CONDENSATE EVAP PAN

Condensate is a common byproduct from the operation of refrigerators, freezers, and ice machines. Condensation occurs when water is changed from it's gaseous form (water vapor) into liquid as it passes over the evaporator coil. Typically this can occur when warm air comes into contact with cold surfaces where water droplets will form. A condensate drain system is the exit route for this moisture as is collects in condensate the pan, and out through the condensate drain line.

A drip pan or drain pan is a container for catching material such as water or grease that drips from above (as from the burners of a gas range or condensation from an evaporator).  It is usually a shallow rectangular metal or plastic pan used especially for baking and roasting, frying, and water containment and may be connected to a drain or drain pipe.

The purpose of the evaporator is to extract heat from the ambient environment (such as the space inside of a refrigerator/freezer/walk-in) allowing that space to cool to a desired temperature which is controlled by a thermostat.
