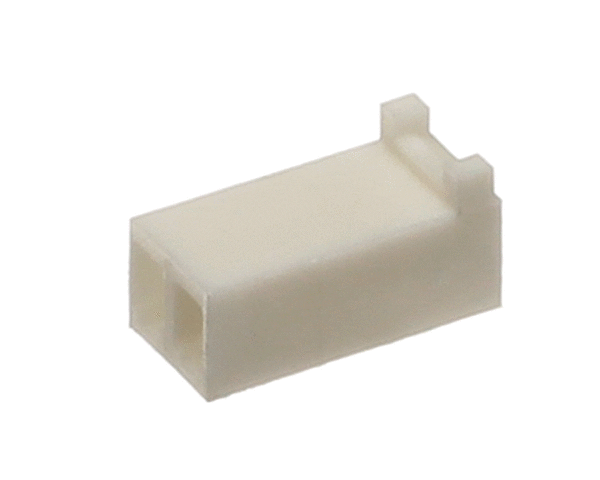

Nieco 10512

CONNECTOR CIRCUIT BOARD 2 P

A printed circuit board (PCB) mechanically supports and electrically connects electronic components or electrical components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate. Components are generally soldered onto the PCB to both electrically connect and mechanically fasten them to it.

A circuit is a closed path that allows electricity to flow from one point to another. It may include various electrical components, such as transistors, resistors, and capacitors, and the flow is unimpeded unless that path is interrupted by a breaker.

Most connectors have a gender i.e. the male component, called a plug, connects to the female component, or socket. A connection may be removable (as for portable equipment), require a tool for assembly and removal, or serve as a permanent joint between two points. An adapter can be used to join dissimilar connectors. Connectors are commonly used in plumbing and electromechanical assemblies.
