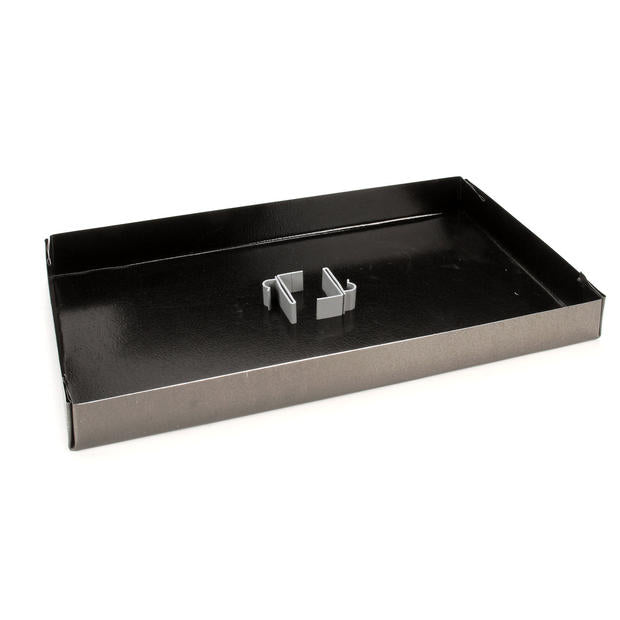

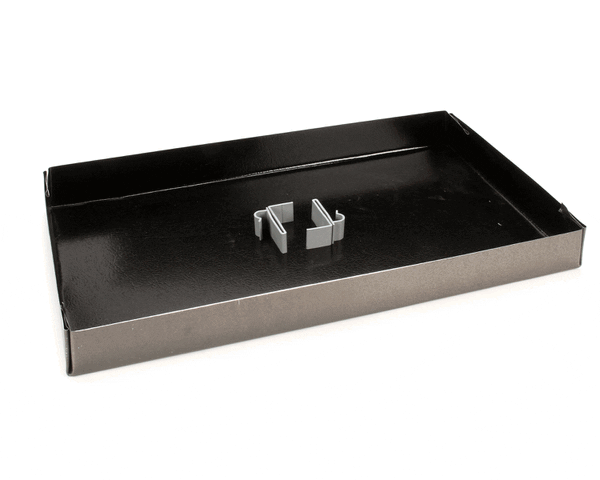

CONDENSATE PAN WITHOUT WICKING
Condensate is a common byproduct from the operation of refrigerators, freezers, and ice machines. Condensation occurs when water is changed from it's gaseous form (water vapor) into liquid as it passes over the evaporator coil. Typically this can occur when warm air comes into contact with cold surfaces where water droplets will form. A condensate drain system is the exit route for this moisture as is collects in condensate the pan, and out through the condensate drain line.
A drip pan or drain pan is a container for catching material such as water or grease that drips from above (as from the burners of a gas range or condensation from an evaporator). It is usually a shallow rectangular metal or plastic pan used especially for baking and roasting, frying, and water containment and may be connected to a drain or drain pipe.
A pan is any device used as a container or a collector. A pan may refer to a shallow cooking implement used on a burner or in an oven or it may refer to a similar collecting implement used to capture water, condensation, grease, shortening, and other drainage. A pan may also be used to contain processed food items such as meat, fruit and vegetables, and crumbs as they exit a mincer, slicer, or dicer.
Capillary action (sometimes capillarity, capillary motion, capillary effect, or wicking) is the ability of a liquid to flow in narrow spaces without the assistance of, or even in opposition to, external forces like gravity. The effect can be seen in the drawing up of liquids in a thin tube. It occurs because of intermolecular forces between the liquid and surrounding solid surfaces. If the diameter of the tube is sufficiently small, then the combination of surface tension (which is caused by cohesion within the liquid) and adhesive forces between the liquid and container wall act to propel the liquid.
Master-Bilt (sometimes spelled "Masterbilt" or "Master Built") offers a broad line of refrigerated cabinets includes ice cream dipping cabinets, open air merchandisers, refrigerators, and reach-in cases utilized in the foodservice, convenience store and restaurant industries. They also produce walk-in coolers and freezers ranging in size from 30 square feet to complete refrigerated warehouses. In addition, their condensing units and refrigeration units are considered by many to be the best in the industry.
Click Image to Zoom In
