Master-Bilt 113643 Relay 20A Spdt 120VAC Coil

Name: Master-Bilt 113643 Relay 20A Spdt 120VAC Coil
Brand: MASTER-BILT
SKU: MB113643
Price: 42.6 USD
Availability: InStock

MASTER-BILT
SKU: MB113643

Condition: NEW

Quality: Highest (OEM — Original Equipment Manufacturer)

MPN: 113643 for exact fit and function.

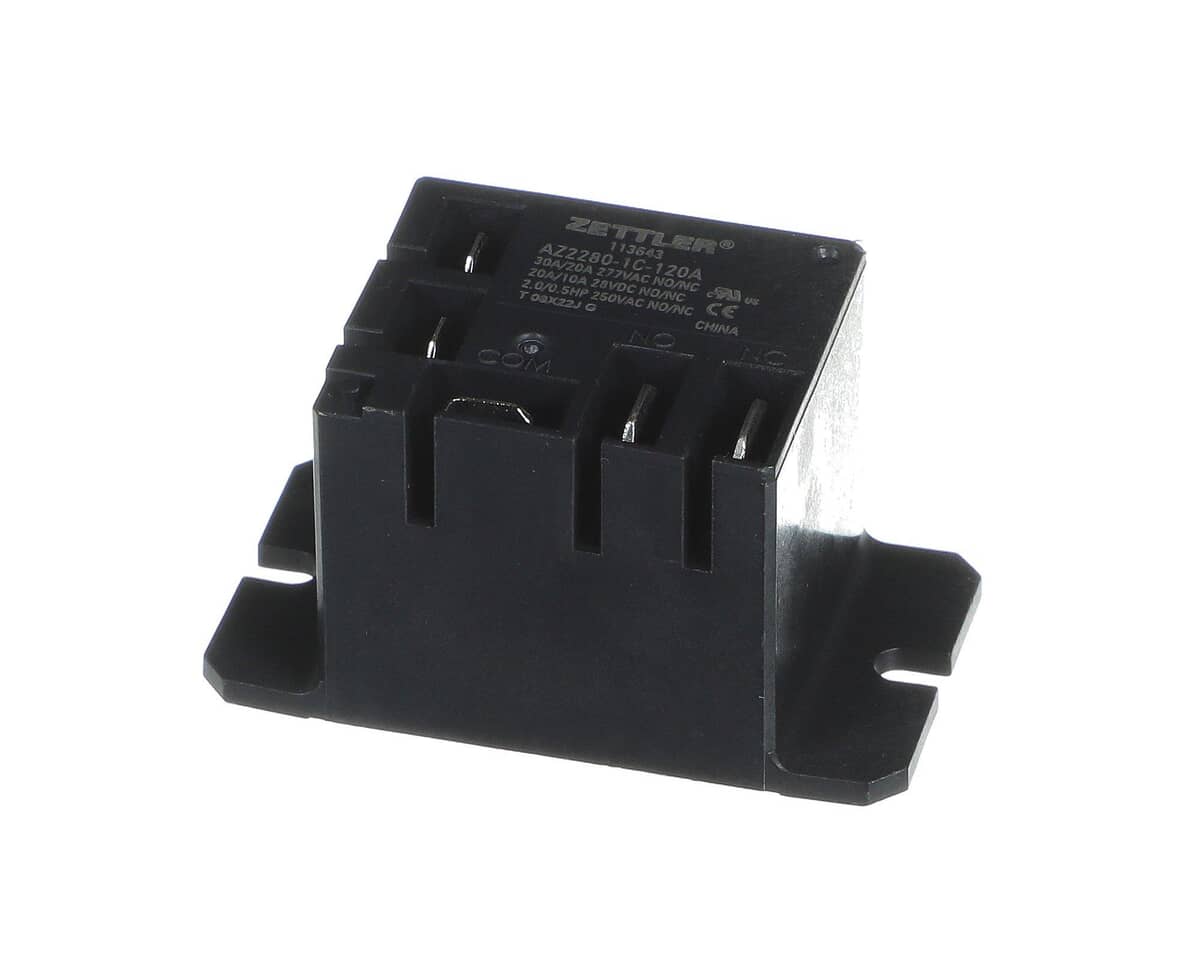

The Master-Bilt 113643 is a relay, 20A, SPDT, 120VAC coil, made by Zettler, model AZ2280-1C-120A.

$42.60 ~~$55.68~~

Need Help?

Fit and Function

It is a single-pole double-throw power relay that switches a connected circuit when its coil is energized. The relay is labeled with contact ratings of 30A/20A at 277VAC, 20A/10A at 28VDC, and 2.0/0.5HP at 250VAC.

Specifications

Manufacturer: Zettler
Model: AZ2280-1C-120A
Coil: 120VAC
Type: SPDT

113643

Dimensions & Details:

Width: 1.1 in (2.79 cm)
Height: 1.05 in (2.67 cm)
Length: 1.95 in (4.95 cm)
Weight: 0.07 lbs (31.75 g)
Unit of Measure: Each (EA)
Manufacturer Code: MB

Fits Models / Other Detail:

BQ-25KLAWD150RL3

LASD250
