Genuine OEM Hoshizaki 4A1113-01

Nothing Generic, "Equivalent", or Off Brand.™

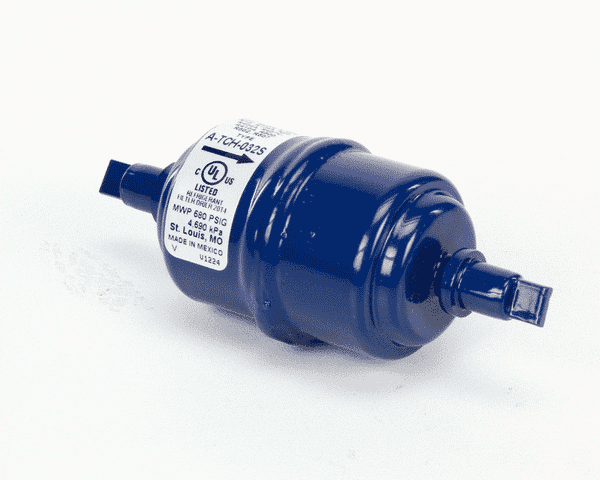

Hoshizaki 4A1113-01

DRIER A-TCH 032S PCN

GENUINE HOSHIZAKI PARTS ONLY
SKU: HOS4A1113-01

Condition: NEW

MPN: 4A1113-01
This is a genuine Hoshizaki 4A1113-01 for exact fit and function.
$38.06 $39.80
Need Help?
A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to absorb system contaminants, such as water, which can create acids, and two, to provide physical filtration. Appliance driers are usually installed in the liquid line, as close to the metering device as possible. If the metering device is a capillary tube, the outlet of the drier is typically sized to allow brazing the capillary tube into the drier. The screen in the drier is placed far enough away so that the capillary tube can be inserted into the drier without blocking the refrigerant flow into the capillary tube.  The position of the drier should be as vertical as possible with the flow in the downward direction. This position will also allow the drier to act as a liquid seal for the capillary tube, to ensure pure liquid refrigerant flow through the capillary tube.

HOSHIZAKI ("Hoshi") is the world leader in the design, manufacturing, and marketing of a wide range of products for the foodservice industry including ice machines, refrigerators, freezers, prep tables, display cases and dispensers. Hoshizaki technical pocket guides are available here.

Genuine OEM HOSHIZAKI 4A1113-01
General Commodity Codes:
HTS Category Code: 8208.30.00
UNSPC Category Code: 48100000
NAICS Code: 333241
Manufacturer Code: HOS

Dimensions & Details:
 Width: 1.75 in (4.45 cm)
Height: 1.7 in (4.32 cm)
Length: 4.5 in (11.43 cm)
Weight: 0.39 lbs (176.9 g)
Unit of Measure: Each (EA)

Fits Models / Other Detail:

CF1B-FG
CF1B-FGY
CF1B-FS
CF1B-HS
CF1S-FGE
CF1S-FGY
CF1S-FS
CF1S-FSL
CF1S-HS
CF1S-HSL
CF2S-FGE
CF2S-FGY
CF2S-FS
CF2S-HS
CF3B-FS
CF3B-HS
CF3S-FS
CF3S-HS
CPT46-D
CR1B-FG
CR1B-FGY
CR1B-FS
CR1B-HS
CR1S-FGE
CR1S-FGY
CR1S-FS
CR1S-FSL
CR1S-HS
CR1S-HSL
CR2B-FG
CR2B-FGY
CR2B-FS
CR2B-HS
CR2S-FGE
CR2S-FGY
CR2S-FS
CR2S-HS
CR3B-FG
CR3B-FGY
CR3B-FS
CR3B-HS
CR3S-FGE
CR3S-FGY
CR3S-FS
CR3S-HS
CRES36
CRES49
CRES60
CRES72
CRES85
CRES98
DCM-230FE-UK
DCM-240BAF
DCM-270BAH
DCM-270BAH-OS
DCM-300BAH
DCM-300BAH-OS
DCM-500BAH
DCM-500BAH-OS
DCM-500BWH
DCM-500BWH-OS
DCM-750BAF
DCM-750BWF
DCM-751BAH
DCM-751BAH-OS
DCM-751BWH
DCM-751BWH-OS
DT-400BAH-OS
F-1000MAF
F-1000MAF-C
F-1000MWF
F-1000MWF-C
F-1001MAF
F-1001MAF-C
F-1001MAH
F-1001MAH-22C
F-1001MAH-C
F-1001MWF
F-1001MWF-C
F-1001MWH
F-1001MWH-C
F-1500MAH
F-1500MAH-C
F-1500MWH
F-1500MWH-C
F-1501MAH
F-1501MAH-C
F-1501MAJ
F-1501MAJ-C
F-1501MWH
F-1501MWH-C
F-1501MWJ
F-1501MWJ-C
F-1501MWJ-SC
F-300BAF
F-450MAF
F-450MAF-C
F-450MAH
F-450MAH-C
F-500BAF
F-500BAF-C
F-800MAF
F-800MAF-C
F-800MAH
F-800MAH-C
F-800MWF
F-800MWF-C
F-800MWH
F-800MWH-C
F-801MAH
F-801MAH-C
F-801MWH
F-801MWH-C
FD-1001MAH
FD-1001MAH-C
FD-650MAH-C
FD-650MWH-C
HUF40A
HUF40A-D
HUF68A
HUF68A-D
HUR40A
HUR40A-D
HUR68A
HUR68A-D
HUR96A
HUR96A-D
HWF40A
HWF40A-D
HWF68A
HWF68A-D
HWR40A
HWR40A-D
HWR68A
HWR68A-D
HWR96A
HWR96A-D
KMD-450MAH
KMD-450MWH
KMD-460MAH
KMD-460MWH
KML-700MAJ
KML-700MRJ
KML-700MWJ
