Bunn 10836.0000 Schematic 120V120/240V(C/CW)
Bunn
SKU: BU10836.0000
SKU: BU10836.0000
Condition: NEW
Quality: Highest (OEM — Original Equipment Manufacturer)
MPN: 10836.0000 for exact fit and function.
The Bunn 10836.0000 is a 120/240V electrical schematic.
$0.84
$1.10
Unit price /
Unavailable
Fit and Function

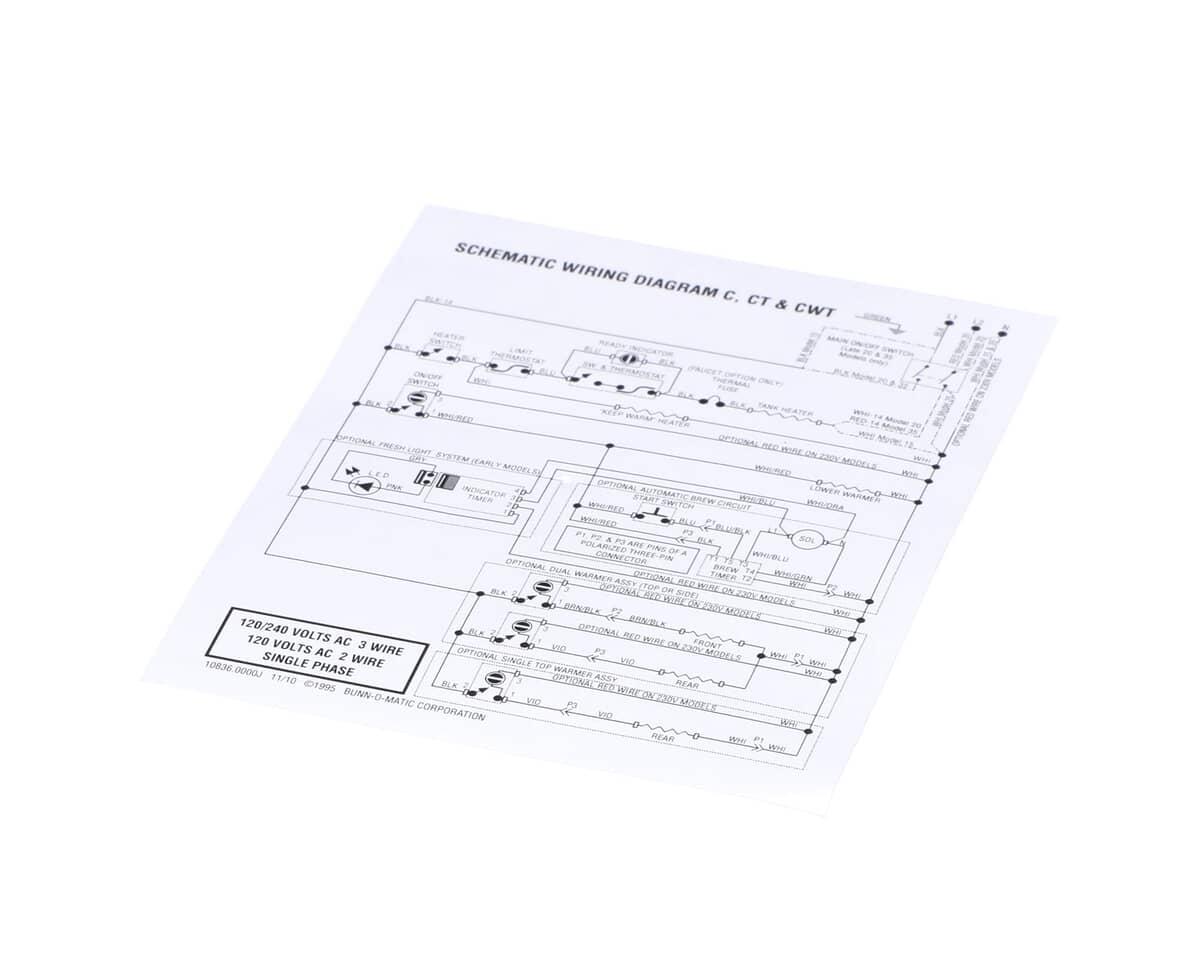

This printed wiring diagram, titled "Schematic Wiring Diagram C, CT & CWT," documents the 120/240V single-phase electrical circuit including heater, warmer, and brew timer connections.
Specifications
- Model
- C, CT, CWT
- Voltage
- 120/240V
10836.0000
Dimensions & Details:
Width: 3.15 in (8.0 cm)
Height: 0.4 in (1.02 cm)
Length: 4.35 in (11.05 cm)
Weight: 0.005 lbs (2.27 g)
Unit of Measure: Each (EA)
Manufacturer Code: BU
Height: 0.4 in (1.02 cm)
Length: 4.35 in (11.05 cm)
Weight: 0.005 lbs (2.27 g)
Unit of Measure: Each (EA)
Manufacturer Code: BU
Fits Models / Other Detail:
40566.0000
BU-CWTF-35
CWT
