Bunn 10178.0000 Schematic Elec 120V Vlpf
Bunn
SKU: BU10178.0000
SKU: BU10178.0000
Condition: NEW
Quality: Highest (OEM — Original Equipment Manufacturer)
MPN: 10178.0000 for exact fit and function.
The Bunn 10178.0000 is a 120V electrical schematic for VLPF equipment.
$1.38
$1.80
Unit price /
Unavailable
Fit and Function

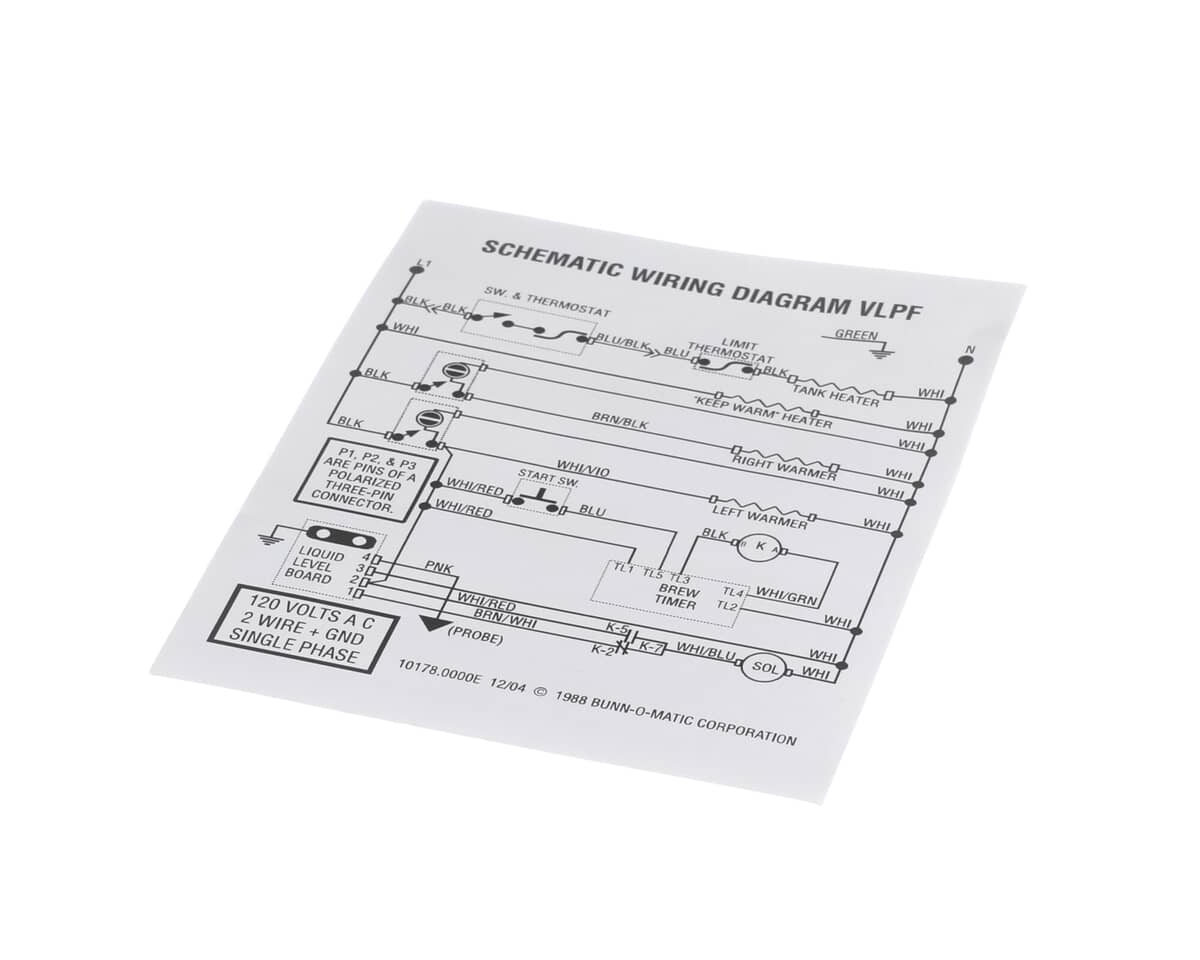

This printed wiring diagram documents the 120V single-phase electrical circuit, including the tank heater, warmers, brew timer, and liquid level board connections.
10178.0000
Dimensions & Details:
Width: 1.001 in (2.54 cm)
Height: 1.001 in (2.54 cm)
Length: 1.001 in (2.54 cm)
Weight: 1.001 lbs (454.05 g)
Unit of Measure: Each (EA)
Manufacturer Code: BU
Height: 1.001 in (2.54 cm)
Length: 1.001 in (2.54 cm)
Weight: 1.001 lbs (454.05 g)
Unit of Measure: Each (EA)
Manufacturer Code: BU
Fits Models / Other Detail:
32262.0000
BU-VLPF
