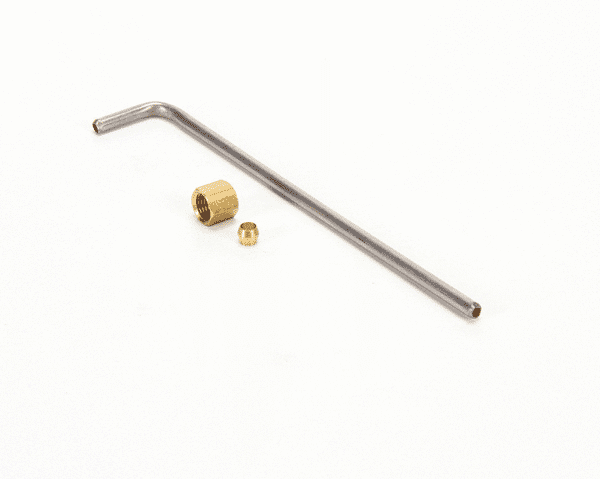

PILOT TUBE W/NUT & FERRULE; 7-
A nut is a type of fastener with a threaded hole. Nuts are almost always used in conjunction with a mating bolt to fasten multiple parts together. The two partners are kept together by a combination of their threads' friction (with slight elastic deformation), a slight stretching of the bolt, and compression of the parts to be held together.
A pilot light is a small gas flame, usually natural gas or liquefied petroleum gas, which serves as an ignition source for a more powerful gas burner. In a pilot assembly, there is thermocouple sitting in the pilot light's flame. The electricity that is created from the flame contacting the thermocouple wire runs to a small electromagnetic valve and holds it open. If the pilot light blows out, the thermocouple quickly cools off. It stops generating electricity and the valve closes.
A tube (tubular section, tubing, or hollow cylinder) usually but not necessarily of circular cross-section, used mainly to convey substances which can flow liquids and gases (fluids), slurries, powders and masses of small solids. Plastic tubing is widely used for its light weight, chemical resistant, non-corrosive properties, and ease of making connections. A tube may also reference a florescent light bulb or a housing of lamps or LEDs.
The Bakers Pride Oven Company was founded in New York in the mid 1940’s, and initiated one of the most dramatic innovations in the history of American cuisine by inventing the modern production pizza oven. Today, Bakers Pride is world renowned for high quality commercial baking, cooking, and broiling equipment.
