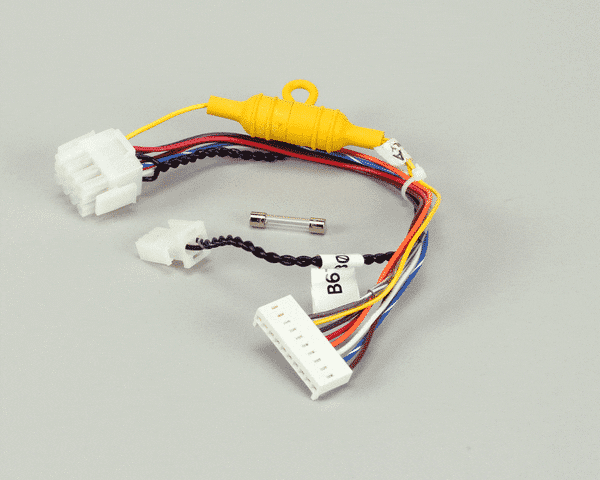

Pitco B6760301

WIRING RLY BRD/CONTROL RT FUSE MG

Controls of all kinds are integral parts of restaurant equipment operation. A control is a switch or other device by which a machine is regulated. A control may be manual or automatically operated. An electro-mechanical control typically consists of multiple relays, timers, and/or counters wired together on an enclosure panel. Electro-mechanical control is also referred to simply as "Relay Control", which is a more accurate term since solid state electronic relays, timers, and counters are standard components. Contactors, motor and compressor starters, valves, thermostats, and other output devices are used to turn on/off motors, indicator lights, heating elements, and other components used in the equipment.

A fuse is an electrical safety device that operates to provide over-current protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby stopping or interrupting the current. Once a fuse has blown, it must be replaced or rewired, depending on the type. There are thousands of different fuse designs which have specific current and voltage ratings, breaking capacity and response times, depending upon the function of the piece of restaurant equipment.
