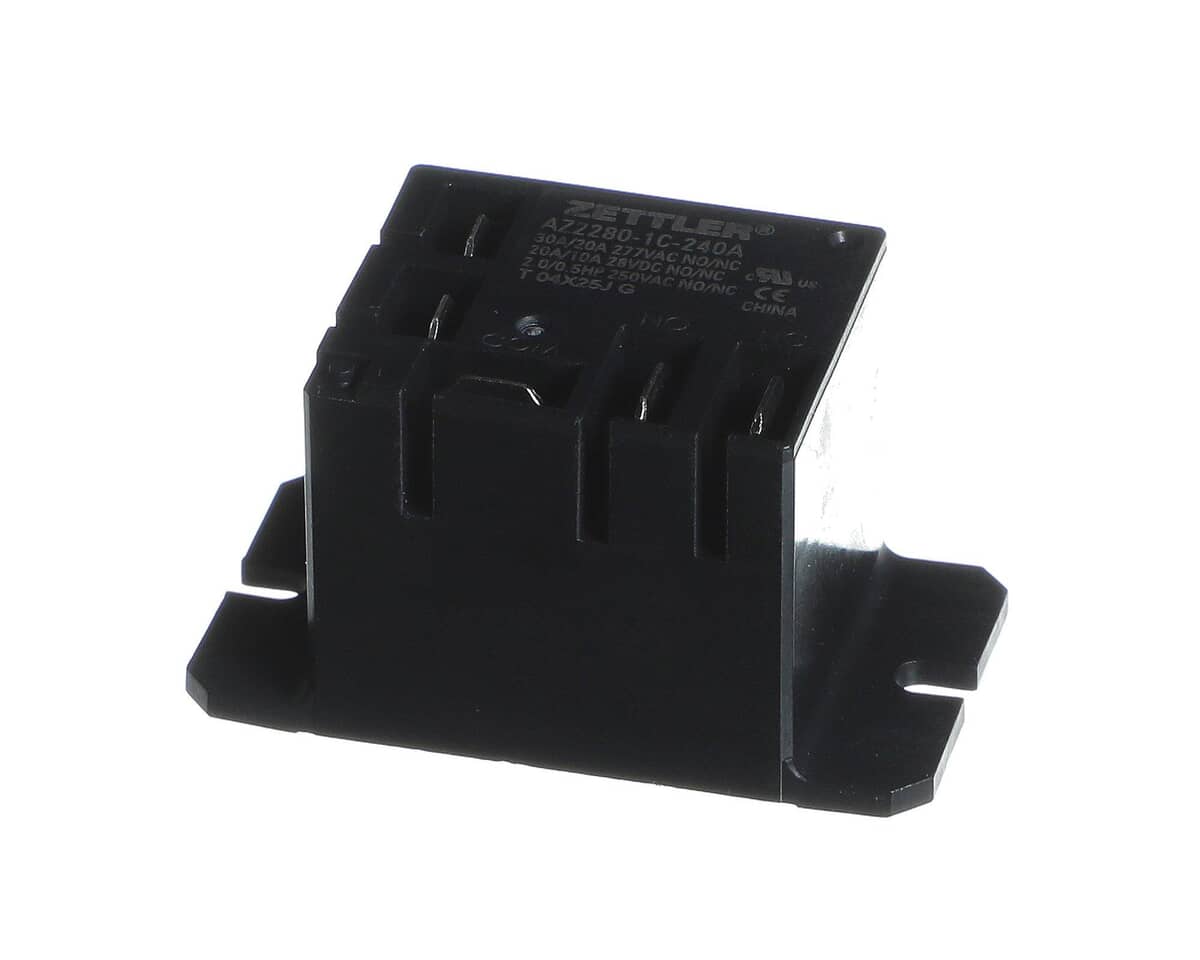

Master-Bilt 113644 Relay 20A Spdt 240VAC Coil
MASTER-BILT
SKU: MB113644
SKU: MB113644
Condition: NEW
Quality: Highest (OEM — Original Equipment Manufacturer)
MPN: 113644 for exact fit and function.
The Master-Bilt 113644 is a relay designed for use in Master-Bilt refrigeration equipment, specifically for switching electrical circuits based on control signals.
$34.14
$44.63
Unit price /
Unavailable
Fit and Function
This part operates by enabling low-voltage controls to switch high-power loads within Master-Bilt walk-in and reach-in refrigeration systems. It is critical for the operation of various components by allowing them to be activated or deactivated based on the system's requirements. The relay features a single-pole double-throw (SPDT) configuration, which provides flexibility in controlling multiple circuits. During troubleshooting, it helps test the coil resistance and contact continuity to ensure proper functionality.
Specifications
- Configuration
- SPDT (Single Pole Double Throw)
- Shape
- Rectangular with mounting base
113644
Dimensions & Details:
Width: 2.0 in (5.08 cm)
Height: 1.0 in (2.54 cm)
Length: 2.0 in (5.08 cm)
Weight: 0.004 lbs (1.81 g)
Unit of Measure: Each (EA)
Manufacturer Code: MB
Height: 1.0 in (2.54 cm)
Length: 2.0 in (5.08 cm)
Weight: 0.004 lbs (1.81 g)
Unit of Measure: Each (EA)
Manufacturer Code: MB
Fits Models / Other Detail:
H1M5D
HBM5D
LFM5
